OO Design and Polymorphism Design: Assignment
Added on -2019-09-16
| 16 pages
| 2346 words
| 292 views
Trusted by 2+ million users,
1000+ happy students everyday
Showing pages 1 to 4 of 16 pages
CEWP559, FALL 2016Assignment 3Due: December 6, 2016TASK 1 (2 5 M ARK S)This assignment will give you practice with the following concepts;OO Design; polymorphismDesign patterns; Factory, Iterator, Composition (optional).TestsYou will design a program that uses composition, polymorphism, iterators and factories to display multiple objects on a canvas.The final image will look like the following.What should be submitted:1.A zip file with all the classes, files, xml file. (Ready to run).2.Place a generated BMP image into the zip file (if you can generate the image).3.Results of your test method run.4.Results of your graphic test run.S T E P 1 | P RO J E CT L A Y O UTPage 1 of 16

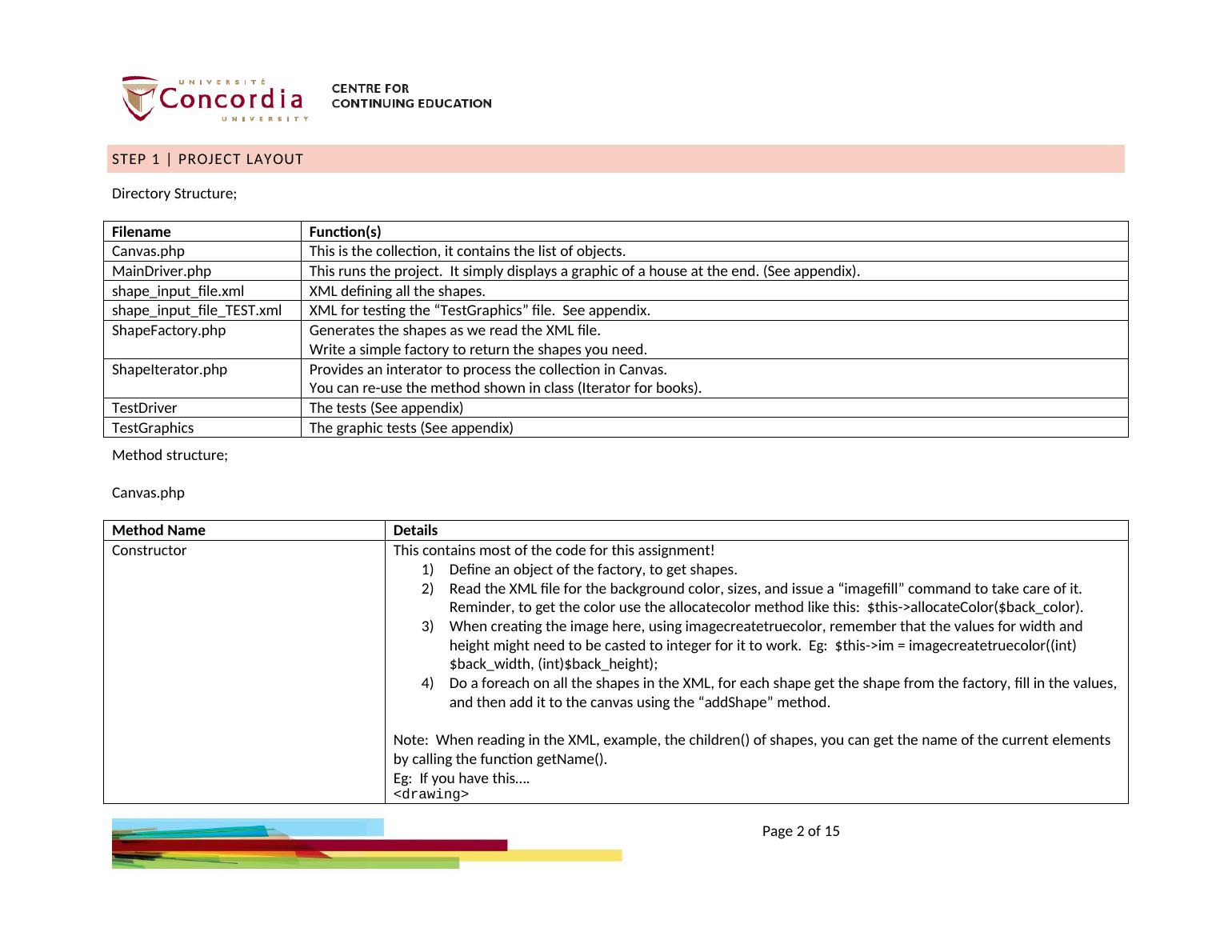

Directory Structure;FilenameFunction(s)Canvas.phpThis is the collection, it contains the list of objects.MainDriver.phpThis runs the project. It simply displays a graphic of a house at the end. (See appendix).shape_input_file.xmlXML defining all the shapes.shape_input_file_TEST.xmlXML for testing the “TestGraphics” file. See appendix.ShapeFactory.phpGenerates the shapes as we read the XML file.Write a simple factory to return the shapes you need.ShapeIterator.phpProvides an interator to process the collection in Canvas.You can re-use the method shown in class (Iterator for books).TestDriverThe tests (See appendix)TestGraphicsThe graphic tests (See appendix)Method structure;Canvas.phpMethod NameDetailsConstructorThis contains most of the code for this assignment!1)Define an object of the factory, to get shapes.2)Read the XML file for the background color, sizes, and issue a “imagefill” command to take care of it. Reminder, to get the color use the allocatecolor method like this: $this->allocateColor($back_color).3)When creating the image here, using imagecreatetruecolor, remember that the values for width and height might need to be casted to integer for it to work. Eg: $this->im = imagecreatetruecolor((int)$back_width, (int)$back_height);4)Do a foreach on all the shapes in the XML, for each shape get the shape from the factory, fill in the values,and then add it to the canvas using the “addShape” method.Note: When reading in the XML, example, the children() of shapes, you can get the name of the current elements Page 2 of 16

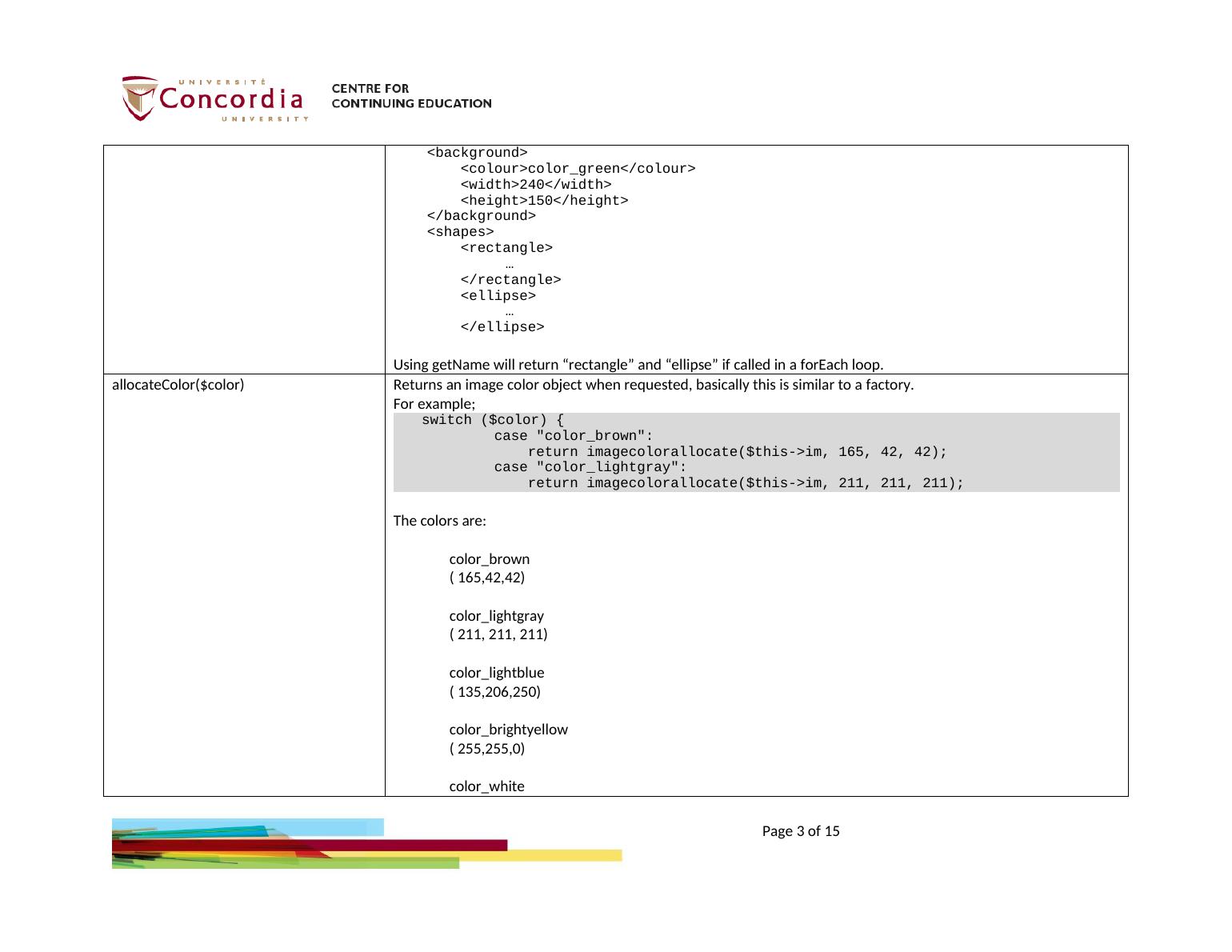

by calling the function getName().Eg: If you have this....<drawing> <background> <colour>color_green</colour> <width>240</width> <height>150</height> </background><shapes> <rectangle>... </rectangle> <ellipse>... </ellipse>Using getName will return “rectangle” and “ellipse” if called in a forEach loop.allocateColor($color)Returns an image color object when requested, basically this is similar to a factory.For example;switch ($color) { case "color_brown": return imagecolorallocate($this->im, 165, 42, 42); case "color_lightgray": return imagecolorallocate($this->im, 211, 211, 211);The colors are:color_brown Page 3 of 16
( 165,42,42)color_lightgray ( 211, 211, 211)color_lightblue ( 135,206,250)color_brightyellow ( 255,255,0)color_white ( 255, 255, 255)color_darkbrown ( 155, 32,32)color_darkgray ( 50,50,50)color_green ( 50, 200, 50)color_blue ( 40, 40, 245)addShape(Shape $shapeIn)See the iterator example for books shown in class. This method is contained there in the collection object.Page 4 of 16
