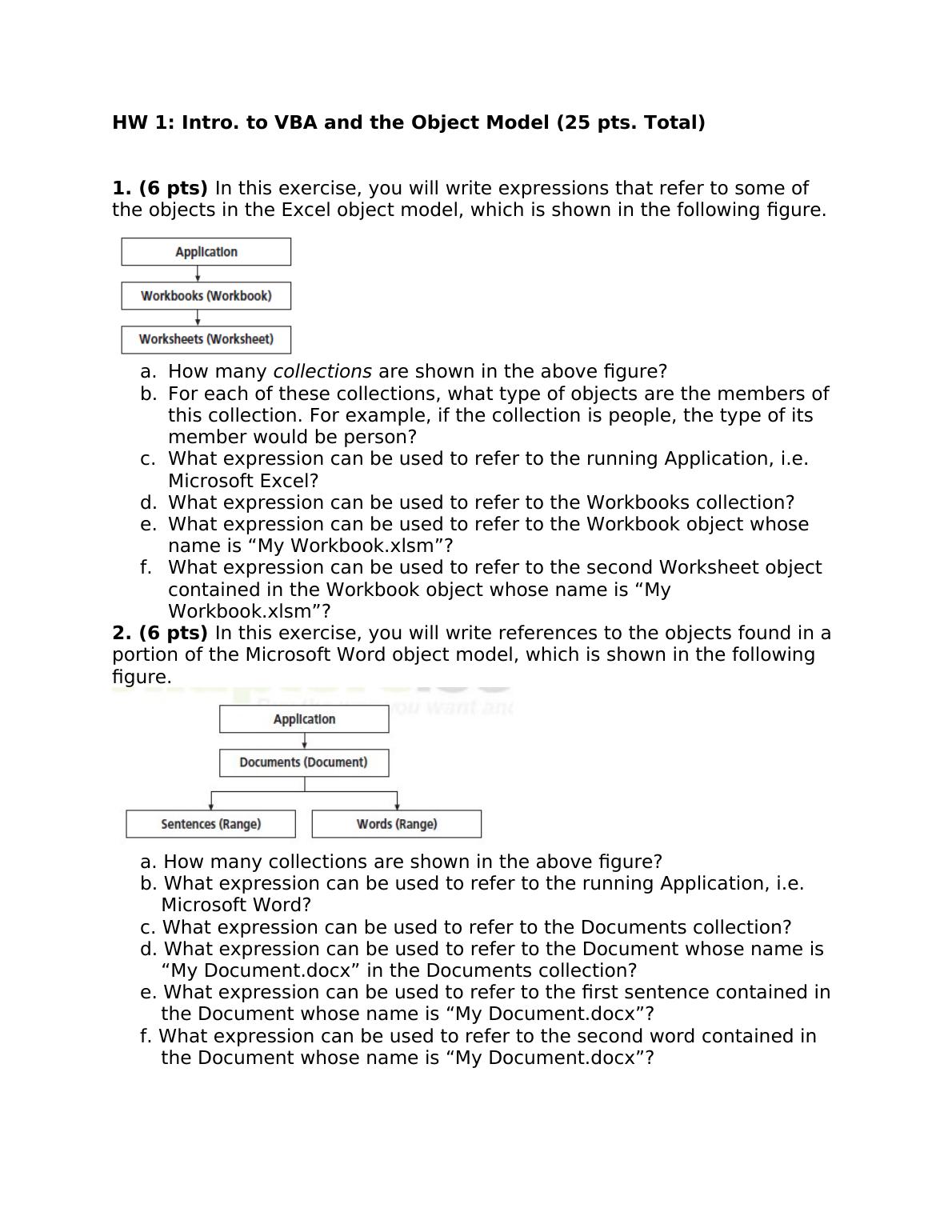

HW 1: Intro. to VBA and the Object Model (25 pts. Total)
1. (6 pts) In this exercise, you will write expressions that refer to some of
the objects in the Excel object model, which is shown in the following figure.
a. How many collections are shown in the above figure?
b. For each of these collections, what type of objects are the members of
this collection. For example, if the collection is people, the type of its
member would be person?
c. What expression can be used to refer to the running Application, i.e.
Microsoft Excel?
d. What expression can be used to refer to the Workbooks collection?
e. What expression can be used to refer to the Workbook object whose
name is “My Workbook.xlsm”?
f. What expression can be used to refer to the second Worksheet object
contained in the Workbook object whose name is “My
Workbook.xlsm”?
2. (6 pts) In this exercise, you will write references to the objects found in a
portion of the Microsoft Word object model, which is shown in the following
figure.
a. How many collections are shown in the above figure?
b. What expression can be used to refer to the running Application, i.e.
Microsoft Word?
c. What expression can be used to refer to the Documents collection?
d. What expression can be used to refer to the Document whose name is
“My Document.docx” in the Documents collection?
e. What expression can be used to refer to the first sentence contained in
the Document whose name is “My Document.docx”?
f. What expression can be used to refer to the second word contained in
the Document whose name is “My Document.docx”?

3. (2 pts) Which of the following instructions will display the number of slides
contained in the third Presentation object, which is named “March.ppt”?
a. print Application.Presentations("March.ppt").Slides.Count
b. print Application.Presentations.Slides(3).Count
c. print Application.Slides.Presentations("March.ppt").Count
d. print Application.Slides.Presentations(3).Count
4. (3 pts) The following instruction is supposed to display the name of the
fourth slide contained in the December.ppt presentation, but it is not working
correctly. Correct the instruction.
? Application.Presentation(December.ppt).Slide(4).Name
5.(8 pts) Explore websites that provide useful information about VBA
programming. Select three of them that you think would be most useful to
you in the future (including doing the project in this course). At least one of
them has to be where you can post VBA questions and get answers fairly
quickly. List the url’s of the three web sites you have chosen and explain the
rationale for the choices. Make sure that the website you list includes
resources on VBA specifically, not on VB (Visual Basic is related to VBA, but
they are not the same) or just Excel. For example, http://www.vbtutor.net/ is
a resource site on VB, but not on VBA. The whole write up for this problem
should be less than a page.
