Network Troubleshooting Tools and Techniques

The provided assignment content discusses various troubleshooting tools and techniques for resolving common network problems. The content covers tools such as NETSET, netstat, Wireless Wizard, Software Diagnostic Packages, Cable Tester, OTDR, PING, inSSIDer, and Internetwork Performance Monitor (IPM). It also highlights the importance of using these tools to troubleshoot issues related to connectivity, routers and switches, wireless access points, new hardware, new network cabling, IP addressing problems, and VLAN problems.

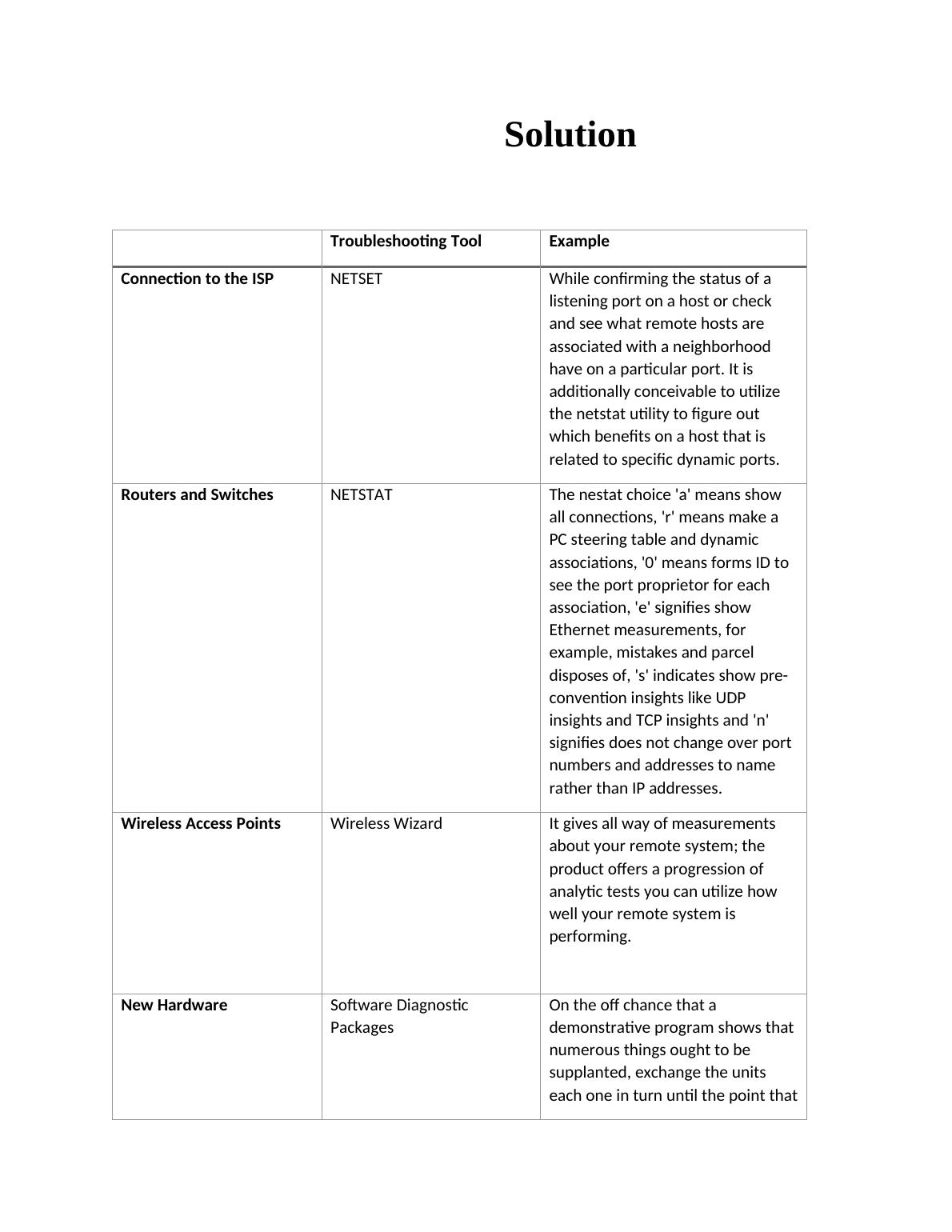

Solution
Troubleshooting Tool Example
Connection to the ISP NETSET While confirming the status of a
listening port on a host or check
and see what remote hosts are
associated with a neighborhood
have on a particular port. It is
additionally conceivable to utilize
the netstat utility to figure out
which benefits on a host that is
related to specific dynamic ports.
Routers and Switches NETSTAT The nestat choice 'a' means show
all connections, 'r' means make a
PC steering table and dynamic
associations, '0' means forms ID to
see the port proprietor for each
association, 'e' signifies show
Ethernet measurements, for
example, mistakes and parcel
disposes of, 's' indicates show pre-
convention insights like UDP
insights and TCP insights and 'n'
signifies does not change over port
numbers and addresses to name
rather than IP addresses.
Wireless Access Points Wireless Wizard It gives all way of measurements
about your remote system; the
product offers a progression of
analytic tests you can utilize how
well your remote system is
performing.
New Hardware Software Diagnostic
Packages
On the off chance that a
demonstrative program shows that
numerous things ought to be
supplanted, exchange the units
each one in turn until the point that

Troubleshooting Tool Example
the group begins up. At that point
supplant any units expelled before
the one that made the framework
start. This procedure guarantees
that there are not various awful
parts.
New Network Cabling Cable Tester Before beginning repairing and
tossing it way, it is essential to
utilize the link analyzer to check
whether there was any blame with
it. If there was any blame, it is easy
to discover responsibility on which
wire or issue is situated on cable.
IP Addressing Problems NETSET While confirming the status of a
listening port on having or to check
and see what remote hosts are
associated with a nearby host on a
particular port. It is likewise
conceivable to utilize the netstat
utility to figure out which benefits
on a host that is related with
specific active ports.
VLAN problems Router Diagnostic
Commands
The commands are:- ping, debug,
trace, show
Troubleshooting Tool Example
Connection to the ISP PING On the off chance that an Internet
association is down at an office, the
ping utility can be utilized to make
sense of whether the issue exists in
the workplace or inside the system of
the Internet supplier.
Routers and Switches PING The ping switches for the windows,
for example,

Troubleshooting Tool Example
- t : this pings the system gadget until
the point that it halted
- n : check shows the quantity of a
reverberate demand to send
- a : it settle the addresses to the
hostnames
- s : tally a timestamp for the check
bounces
- r : tally course records for the check
bounces
- w : it means timeout in the
millisecond to sit tight for the answer
Wireless Access Points inSSIDer The application is intended to
distinguish remote systems and give
an account of their sort, most
extreme exchange rate, and channel
use. There is even a graphical
portrayal of every remote system's
abundance and channel use.
New Hardware Cable Testers The master unit is joined to one end
of the link, and the heap unit is
appended to the next. The ace unit
sends examples to test motions
through the link and understands
them once again from the load unit.
A considerable lot of these analyzers
highlight both RJ-45 and BNC
connectors for testing diverse sorts
of cabling.
New Network Cabling OTDR By utilizing this OTDR gadget, it is
conceivable to recognize to what
extent in the link break happens. It is
an optoelectronic instrument which
is used to portray the optical fiber. It
infuses the arrangement of
heartbeats with optical into a fiber
under test. It is additionally used to

Troubleshooting Tool Example
assess the general weakening and
the fiber length.
IP Addressing Problems PING If an Internet affiliation is down at an
office, the ping utility can be used to
comprehend whether the issue exists
in the working environment or inside
the arrangement of the Internet
provider.
VLAN problems Internetwork Performance
Monitor
Utilize IPM to play out the
accompanying undertakings:
- Troubleshoot issues by checking the
system dormancy between gadgets
- It sends Simple Network
Management Protocol(SNMP) traps,
and SNA cautions at the point when
a client configured threshold is
surpassed, when the association is
lost and restablished, or when a
timeout happens.
- Analyze potential issues previously
they occur by amassing
measurements, which are utilized to
demonstrate and foresee future
system topologies.
- Monitor reaction time between two
system end focuses.
