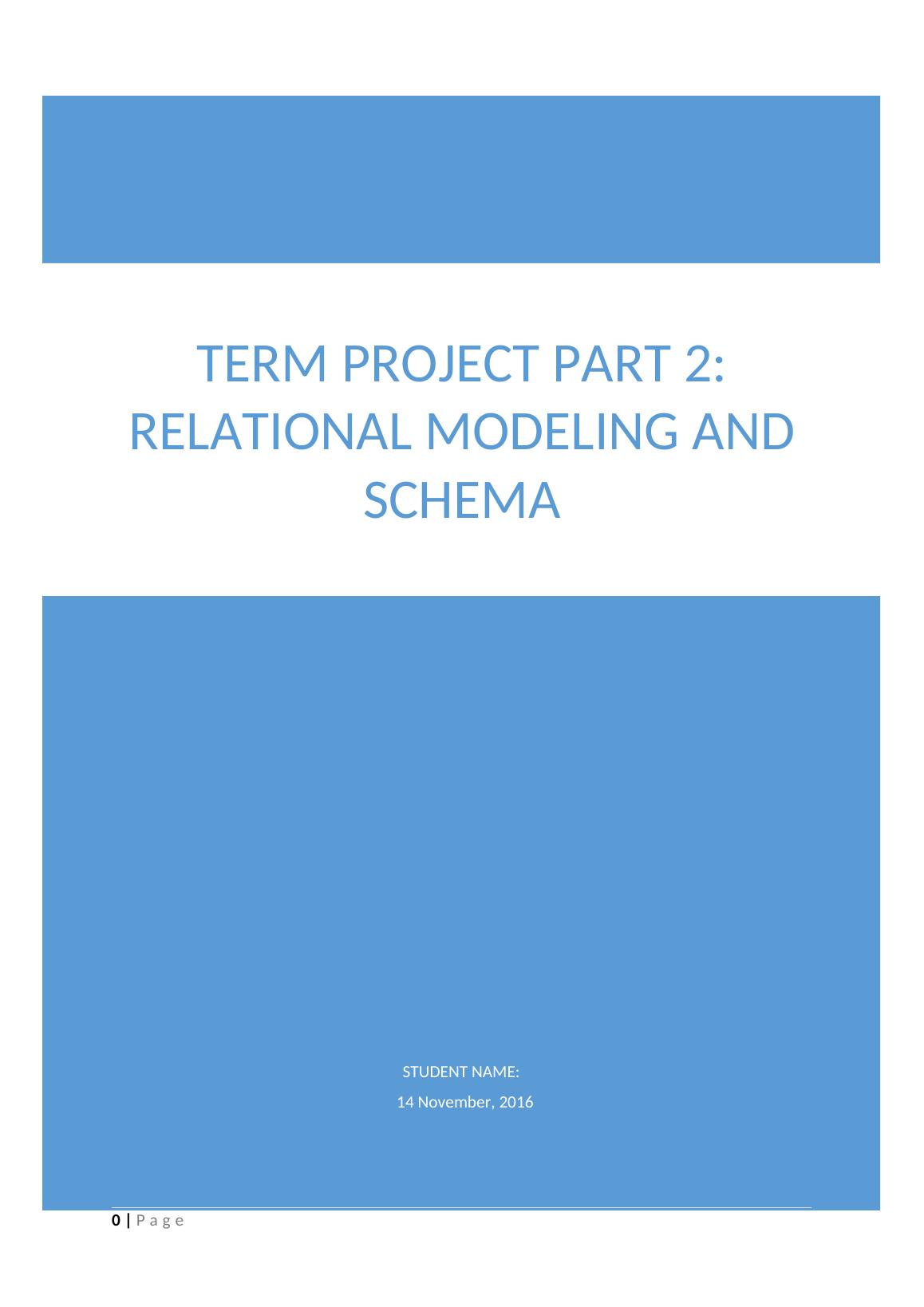

Term Project Part 2: Relational Modeling and Schema
STUDENT NAME:
14 November, 2016

1. TABLE AGENCY: This table was easy to build. All the attributes from the entity were used.
The primary key is same as that in ER-diagram.
AGENCY (AGENCY_ID, NAME, URL, PHONE, TIME_ZONE, LANGUAGE)
2. TABLE OFFERS: this table was designed separately because as the relationship says agency
offers 1 route and a route is offered by one or more agencies. Hence we defined the primary
keys from route and agency table into a separate table to show the relationship
OFFERS (AGENCY_ID*, ROUTE_ID*)
3. TABLE ROUTE: This table was easy to build. All the attributes from the entity were used. The
primary key is same as that in ER-diagram. It is not a weak entity so no trade-off.
ROUTE (ROUTE_ID, ROUTE_SHORT_NAME, ROUTE_LONG_NAME, ROUTE_DESCRIPTION,
ROUTE_TYPE, ROUTE_URL, ROUTE_COLOR)
4. TABLE SERVES: as the relation says, route servers on trip and one trip is served by zero or
more routes. So we defined a separate relation where route id is primary key. Here route id
and trip id are foreign keys from route and trip tables respectively.
SERVES (ROUTE_ID*, TRIP_ID*)
5. TABLE TRIP: this table was simple to design. The attributes and primary key hence defined
were used.
TRIP (TRIP_ID, TRIP_HEADSIGN, TRIP_SHORT_NAME)
1 | P a g e

6. TABLE HAS: This table has been designed to present the relation between trip and stop time
table. The relation is that each trip has a stop time and each stop time is related to one or
more trips.
HAS (TRIP_ID*, STOP_SEQUENCE*)
7. TABLE STOP_TIME: this is week entity, so as the relation says each stop is served by stop
time and a stop time serves zero or more stops, so we will use stop_id from stop table as a
part of primary key
STOP_TIME (STOP_ID*, STOP_SEQUENCE, DEPARTURE_TIME, ARRIVAL_TIME)
8. TABLE STOP: this is a strong entity hence was easy to define. The attributes and primary key
so defined were used. Since range is a composite attribute, so we will use the base attributes
as columns in the schema.
STOP (STOP_ID, STOP_NAME, STOP_DESCRIPTION, URL, LATITUDE, LONGITUDE)
9. TABLE CALENDAR: this table has multivalued attribute schedule, so we will use schedule
itself as a column. Apart from that all other attributes in ERD are used in the schema same as
defined.
CALENDAR (SERVICE_ID, TRIP_ID*, START_DATE, END_DATE, SCHEDULE)
10. USES TBALE: This table has been designed to represent the relation between calendar and
trip. The relation says each trip uses zero or more calendar and a calendar is used by a trip.
USES (SERVICE_ID*, TRIP_ID*)
