Student name:
5 November 2016

Contents
NORMALIZATION...................................................................................................................................2
1NF....................................................................................................................................................2
2NF....................................................................................................................................................2
3NF....................................................................................................................................................2
ASSUMPTIONS.......................................................................................................................................3
ER DIAGRAM..........................................................................................................................................4
CREATE TABLE COMMANDS AND INSERT TABLE COMMANDS..............................................................5
SQL QUERIES........................................................................................................................................10
1 | P a g e

NORMALIZATION
1NF
The initial table structure without normalization is:
Project (Project_id, Project Name, Project_Type, Start Date, expect_finish_date, End Date, Staff_ID,
Name, Job_Type, Job_Grade, skill_name, Hardware_name, Software_name)
After applying 1NF and creating tables with atomic values are as follows:
Project (Project_id, Project Name, Project_Type, Start Date, expect_finish_date, End Date, Staff_ID,
Name, Job_Type, Job_Grade)
Staff_skill (Staff_ID, Name, Job_Type, Job_Grade, skill_name)
Project_hware (Project_id, Project Name, Project_Type, Start Date, expect_finish_date, End Date,
Hardware_name)
Project_sware (Project_id, Project Name, Project_Type, Start Date, expect_finish_date, End Date,
Software_name)
2NF
In 2NF we remove the partial dependency, create primary and foreign keys and the table structure is
as follows:
Project (Project_id, Project Name, Project_Type, Start Date, expect_finish_date, End Date)
Staff (Staff_ID, Name, Job_Type, Job_Grade, Project_id)
Staff_skill(Staff_ID, Name, Job_Type, Job_Grade, skill_name)
Project_hware (Project_id, Hardware_ID, Hardware_name)
Project_sware (Project_id, Software_ID, Software-name)
3NF
In 3NF we remove the transitive dependency and the table structure is as follows:
Project (Project_id, Project Name, Project_Type_id, Start Date, expect_finish_date, End Date)
Project_Type (ptype_id, ptype_name)
Job_type (type_id, type_name)
Staff (Staff_ID, Name, Job_Type_id, Job_Grade)
Staff_skill (Staff_ID, skill_name)
Project_Staff (Staff_ID, Project_id)
Project_hware (Project_id, Hardware_ID)
2 | P a g e

Hardware (Hardware_ID, Hardware_name)
Project_sware (Project_id, Software_ID)
Software (Software_ID, Software-name)
NOTE
UNDERLINE: primary key
ITALICS: foreign key

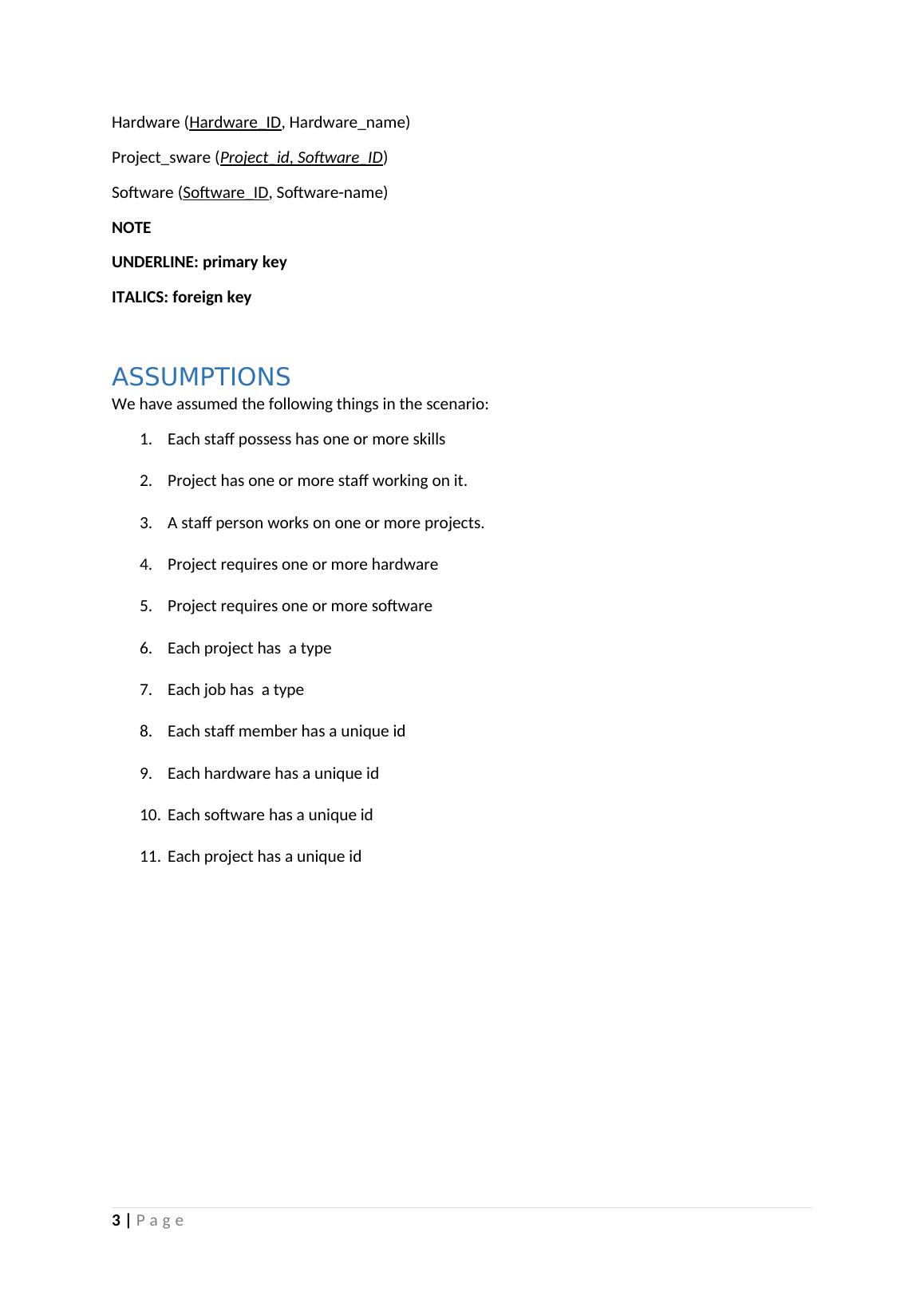

ASSUMPTIONS
We have assumed the following things in the scenario:
1. Each staff possess has one or more skills
2. Project has one or more staff working on it.
3. A staff person works on one or more projects.
4. Project requires one or more hardware
5. Project requires one or more software
6. Each project has a type
7. Each job has a type
8. Each staff member has a unique id
9. Each hardware has a unique id
10. Each software has a unique id
11. Each project has a unique id
3 | P a g e

ER DIAGRAM
4 | P a g e

CREATE TABLE COMMANDS AND INSERT TABLE
COMMANDS
create table Project_Type
(
ptype_id integer primary key,
ptype_name varchar(50)
);
insert all
into project_type(ptype_id, ptype_name) values (1, 'Web')
into project_type(ptype_id, ptype_name) values (2, 'Maintenance')
into project_type(ptype_id, ptype_name) values (3, 'App')
into project_type(ptype_id, ptype_name) values (4, 'Testing')
select * from dual;
create table project
(
Project_id varchar(10) primary key,
Project_Name varchar(100),
Project_Type_id integer,
Start_Date date,
End_Date date,
expect_finish_date date,
constraint p_fk foreign key(Project_Type_id) references Project_Type(ptype_id)
);
insert all
into project(Project_id, Project_Name, Project_Type_id, Start_Date, End_Date, expect_finish_date)
values ('B1049', 'Health System', 1, '01-06-2016', '01-09-2016', '02-09-2016')
5 | P a g e

into project(Project_id, Project_Name, Project_Type_id, Start_Date, End_Date, expect_finish_date)
values ('B1050', 'insurance System', 2, '01-01-2016', '03-03-2016', '06-03-2016')
into project(Project_id, Project_Name, Project_Type_id, Start_Date, End_Date, expect_finish_date)
values ('B1051', 'university System', 3, '01-05-2016', '01-06-2016', '05-06-2016')
select * from dual;
create table Job_type
(
type_id varchar(5) primary key,
type_name varchar(50)
);
insert all
into job_type(type_id, type_name) values ('JT1', 'Imaging')
into job_type(type_id, type_name) values ('JT2', 'Web Developer')
into job_type(type_id, type_name) values ('JT3', 'Maintenance')
into job_type(type_id, type_name) values ('JT4', 'Training')
select * from dual;
create table Staff
(
Staff_ID varchar(10) primary key,
Name varchar(50),
Job_Type_id varchar(5),
Job_Grade integer,
constraint s_fk foreign key(job_type_id) references Job_type(type_id)
);
6 | P a g e

insert all
into staff(Staff_id, name, Job_Type_id, Job_Grade) values ('1014E', 'John Baker', 'JT1', 3)
into staff(Staff_id, name, Job_Type_id, Job_Grade) values ('230R1', 'Marian Dowd', 'JT2', 1)
into staff(Staff_id, name, Job_Type_id, Job_Grade) values ('0P625', 'Jennifer Tuff', 'JT3', 2)
into staff(Staff_id, name, Job_Type_id, Job_Grade) values ('4T371', 'Paul Downing', 'JT4', 3 )
into staff(Staff_id, name, Job_Type_id, Job_Grade) values ('1044E', 'Johnny Woods', 'JT1', 3)
into staff(Staff_id, name, Job_Type_id, Job_Grade) values ('233R1', 'Mia S.', 'JT2', 1)
into staff(Staff_id, name, Job_Type_id, Job_Grade) values ('0Q625', 'Jenny Duff', 'JT3', 2)
into staff(Staff_id, name, Job_Type_id, Job_Grade) values ('6T371', 'Pal Sterling', 'JT4', 3 )
select * from dual;
create table Staff_skill
(
Staff_ID varchar(10),
skill_name varchar(50),
primary key(staff_id, skill_name),
constraint ss_fk foreign key(Staff_ID) references staff(Staff_ID)
);
insert all
INTO Staff_skill(STAFF_ID, SKILL_NAME) VALUES('1014E', 'DATA IMAGING' )
INTO Staff_skill(STAFF_ID, SKILL_NAME) VALUES('230R1', 'WEB DEVELOPMENT' )
INTO Staff_skill(STAFF_ID, SKILL_NAME) VALUES('0P625', 'VB.NET' )
INTO Staff_skill(STAFF_ID, SKILL_NAME) VALUES('4T371', 'C++' )
INTO Staff_skill(STAFF_ID, SKILL_NAME) VALUES('1044E', 'BLACK BOX' )
INTO Staff_skill(STAFF_ID, SKILL_NAME) VALUES('233R1', 'WEB DEVELOPMENT' )
INTO Staff_skill(STAFF_ID, SKILL_NAME) VALUES('0Q625', 'SQL' )
INTO Staff_skill(STAFF_ID, SKILL_NAME) VALUES('6T371', 'NOSQL' )
select * from dual;
7 | P a g e

create table Project_Staff
(
Staff_ID varchar(10),
Project_id varchar(10),
primary key(staff_id, project_id),
constraint ps_fk1 foreign key(Staff_ID) references staff(Staff_ID),
constraint ps_fk2 foreign key(project_ID) references project(project_ID)
);
insert all
INTO PROJECT_STAFF(STAFF_ID, PROJECT_ID) VALUES('1014E', 'B1049' )
INTO PROJECT_STAFF(STAFF_ID, PROJECT_ID) VALUES('230R1', 'B1049' )
INTO PROJECT_STAFF(STAFF_ID, PROJECT_ID) VALUES('0P625', 'B1049' )
INTO PROJECT_STAFF(STAFF_ID, PROJECT_ID) VALUES('4T371', 'B1049' )
INTO PROJECT_STAFF(STAFF_ID, PROJECT_ID) VALUES('1044E', 'B1050' )
INTO PROJECT_STAFF(STAFF_ID, PROJECT_ID) VALUES('233R1', 'B1050' )
INTO PROJECT_STAFF(STAFF_ID, PROJECT_ID) VALUES('0Q625', 'B1051' )
INTO PROJECT_STAFF(STAFF_ID, PROJECT_ID) VALUES('6T371', 'B1050' )
INTO PROJECT_STAFF(STAFF_ID, PROJECT_ID) VALUES('6T371', 'B1051' )
select * from dual;
create table Software
(
Software_ID integer primary key,
Software_name varchar(50)
);
8 | P a g e

insert all
INTO SOFTWARE(SOFTWARE_ID, SOFTWARE_NAME) VALUES (1001, 'Encryption Protocol Suite')
INTO SOFTWARE(SOFTWARE_ID, SOFTWARE_NAME) VALUES (1002, 'Autodesk Maya')
INTO SOFTWARE(SOFTWARE_ID, SOFTWARE_NAME) VALUES (1003, 'Rational Rose')
INTO SOFTWARE(SOFTWARE_ID, SOFTWARE_NAME) VALUES (1004, 'Sql Server')
select * from dual;
create table Hardware
(
Hardware_ID integer primary key,
Hardware_name varchar(50)
);
insert all
INTO HARDWARE(HARDWARE_ID, HARDWARE_NAME) VALUES (101, 'Imagines equipment’)
INTO HARDWARE(HARDWARE_ID, HARDWARE_NAME) VALUES (102, 'Web Cam')
INTO HARDWARE(HARDWARE_ID, HARDWARE_NAME) VALUES (103, 'Scanner')
INTO HARDWARE(HARDWARE_ID, HARDWARE_NAME) VALUES (104, 'External Drive')
INTO HARDWARE(HARDWARE_ID, HARDWARE_NAME) VALUES (105, 'Hard Disk 5GB')
INTO HARDWARE(HARDWARE_ID, HARDWARE_NAME) VALUES (106, 'Flat Screen Monitor')
INTO HARDWARE(HARDWARE_ID, HARDWARE_NAME) VALUES (107, 'Laser Printer')
select * from dual;
create table Project_hware
(
Project_id varchar(10),
Hardware_ID integer,
primary key(project_id, hardware_id),
constraint ph_fk1 foreign key(hardware_ID) references hardware(hardware_ID),
9 | P a g e

constraint ph_fk2 foreign key(project_ID) references project(project_ID)
);
insert all
into Project_hware(project_id, hardware_id) values('B1049', 101)
into Project_hware(project_id, hardware_id) values('B1049', 102)
into Project_hware(project_id, hardware_id) values('B1049', 103)
into Project_hware(project_id, hardware_id) values('B1049', 104)
into Project_hware(project_id, hardware_id) values('B1050', 101)
into Project_hware(project_id, hardware_id) values('B1050', 102)
into Project_hware(project_id, hardware_id) values('B1051', 101)
into Project_hware(project_id, hardware_id) values('B1051', 104)
into Project_hware(project_id, hardware_id) values('B1051', 102)
into Project_hware(project_id, hardware_id) values('B1051', 103)
into Project_hware(project_id, hardware_id) values('B1050', 107)
into Project_hware(project_id, hardware_id) values('B1051', 106)
select * from dual;
create table Project_sware
(
Project_id varchar(10),
Software_ID integer,
primary key(project_id, software_id),
constraint psw_fk1 foreign key(software_ID) references software(software_ID),
constraint psw_fk2 foreign key(project_ID) references project(project_ID)
);
insert all
into Project_sware(project_id, software_id) values('B1049', 1001)
into Project_sware(project_id, software_id) values('B1049', 1002)
10 | P a g e

into Project_sware(project_id, software_id) values('B1049', 1003)
into Project_sware(project_id, software_id) values('B1051', 1001)
into Project_sware(project_id, software_id) values('B1051', 1002)
into Project_sware(project_id, software_id) values('B1050', 1003)
into Project_sware(project_id, software_id) values('B1050', 1004)
select * from dual;
SQL QUERIES
1. A list of employees assigned to a particular project.
SQL: select staff_id from project_staff where project_id = 'B1049';
OUTPUT:
11 | P a g e

2. A list of projects which an individual employee is assigned to.
SQL: select project_id from project_staff where staff_id = '1014E';
OUTPUT:
3. A list of projects which complete before a given date.
SQL: select * from project where end_date < expect_finish_date;
OUTPUT:
12 | P a g e

4. A list of staff who could work on a web development project.
SQL: select s.* from staff s, staff_skill ss where ss.staff_id = s.staff_id and ss.skill_name like
'%WEB DEVELOPMENT%' ;
OUTPUT:
13 | P a g e

5. A list of projects that require encryption software and Imagines equipment.
SQL: select p.project_id from project p, project_hware ph, project_sware ps, software s,
hardware h where ps.software_id = s.software_id and ph.hardware_id = h.hardware_id and
p.project_id = ph.project_id and p.project_id = ps.project_id and h.hardware_name like
'%Imagines%' and s.software_name like '%Encryption%'
OUTPUT:
6. The Project Allocation form (Fig. 1) which appears in the case study.
SQL: select p.project_id as project_# , p.project_name as project_name, pt.ptype_name as
project_type, p.start_Date as start_date, p.end_Date as end_date,
s.staff_id as staff_#, s.name as Staff_name, jt.type_name as job_type, s.job_grade as
job_grade, h.hardware_name as hardwares, sw.software_name as softwares from project p,
project_type pt, staff s, project_staff ps, job_type jt, project_sware psw, project_hware phw,
software sw, hardware h where p.project_type_id = pt.ptype_id and p.project_id =
ps.project_id and s.staff_id = ps.staff_id and jt.type_id = s.job_type_id and psw.software_id
14 | P a g e

= sw.software_id and phw.hardware_id = h.hardware_id and psw.project_id = p.project_id
and phw.project_id = p.project_id and p.project_id = 'B1049';
OUTPUT:
7. Number People performing each type of job
SQL: select count(s.staff_id) as number_of_people , j.type_name as jobs from staff s,
Job_type j where j.type_id = s. Job_Type_id group by j.type_name;
OUTPUT:
15 | P a g e

8. List of hardware that have not been used in any project
SQL: select * from hardware where hardware_id NOT IN (select distinct hardware_id from
project_hware);
OUTPUT:
16 | P a g e

17 | P a g e
